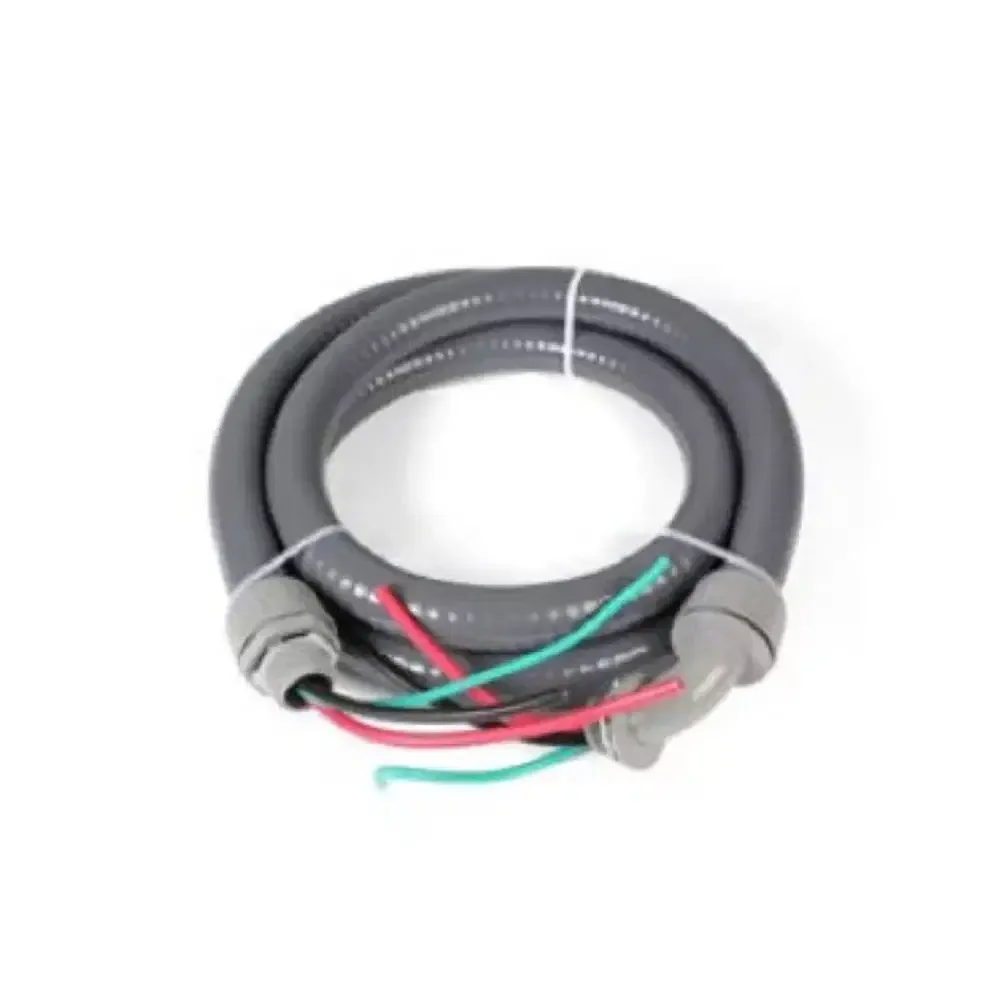

Ultra-Whip Liquidtight Flexible Non-Metallic PVC Conduit Cable Whip - 1/2" ECW-126103

Complete HVAC equipment connections with the Everwell ECW-126103 flexible non-metallic PVC cable whip. This preconfigured assembly combines a 6-foot weather-resistant conduit, three color-coded 10 AWG conductors and two connector styles in one convenient installation accessory.

Its flexible PVC construction helps simplify routing between electrical equipment and HVAC components. The included red, black and green conductors provide clear identification, while the straight and 90-degree connectors offer flexibility when working with different enclosure and equipment orientations.

Designed for professional electrical and HVAC installations, this conduit whip has a published maximum operating temperature of 167°F. Final compatibility, circuit requirements and installation methods must be verified by a qualified technician.

PRODUCT OVERVIEW

Product Type: Flexible non-metallic conduit cable whip

Trade Size: 1/2 in.

Overall Length: 6 ft.

Primary Material: Flexible non-metallic PVC conduit

Color/Finish: Gray conduit

Installation Type: Field-connected electrical installation

Recommended Use: Electrical connections for compatible HVAC and refrigeration equipment

Included Components: PVC conduit, three factory-installed conductors, one straight connector and one 90-degree connector

KEY FEATURES

Six-foot flexible conduit assembly

1/2-inch nominal conduit trade size

Three factory-installed 10 AWG conductors

Red, black and green conductor identification

Straight conduit connector included

90-degree conduit connector included

Weather-resistant non-metallic PVC construction

Maximum published operating temperature of 167°F

These specifications are listed by Everwell for part ECW-126103.

PRODUCT ADVANTAGES

Preassembled configuration reduces component sourcing and preparation

Flexible conduit supports easier routing around equipment and obstacles

Color-coded conductors simplify identification during installation

Straight and angled connectors accommodate different entry orientations

Non-metallic PVC construction is not subject to metal rust

Six-foot length suits many short equipment-to-disconnect connections

TECHNICAL SPECIFICATIONS

Manufacturer Part Number: ECW-126103

Conduit Type: Flexible non-metallic PVC conduit cable whip

Nominal Conduit Trade Size: 1/2 in.

Conduit Length: 6 ft. / 72 in.

Number of Conductors: 3

Conductor Gauge: 10 AWG each

Conductor Colors: Red, black and green

Straight Connector: 1 included

90-Degree Connector: 1 included

Maximum Operating Temperature: 167°F / 75°C

Weather Resistance: Manufacturer describes the assembly as weather-proof

Certification Mark: cRUus mark shown in the Everwell manufacturer catalog

Voltage Rating: Not officially specified by the manufacturer.

Conductor Insulation Type: Not officially specified by the manufacturer.

Maximum Circuit Ampacity: Must be determined by the installer according to the conductor rating, terminal limitations, equipment specifications and applicable electrical codes.

PRODUCT DIMENSIONS

Length: 72.00 in. / 6 ft.

Nominal Conduit Diameter: 0.50 in.

PERFECT FOR

Compatible air-conditioning equipment connections

HVAC condenser-to-disconnect connections

Heat-pump electrical installations

Refrigeration equipment installations

Residential and light-commercial HVAC projects

Replacement of compatible preassembled cable whips

Professional electrical and HVAC contractors
