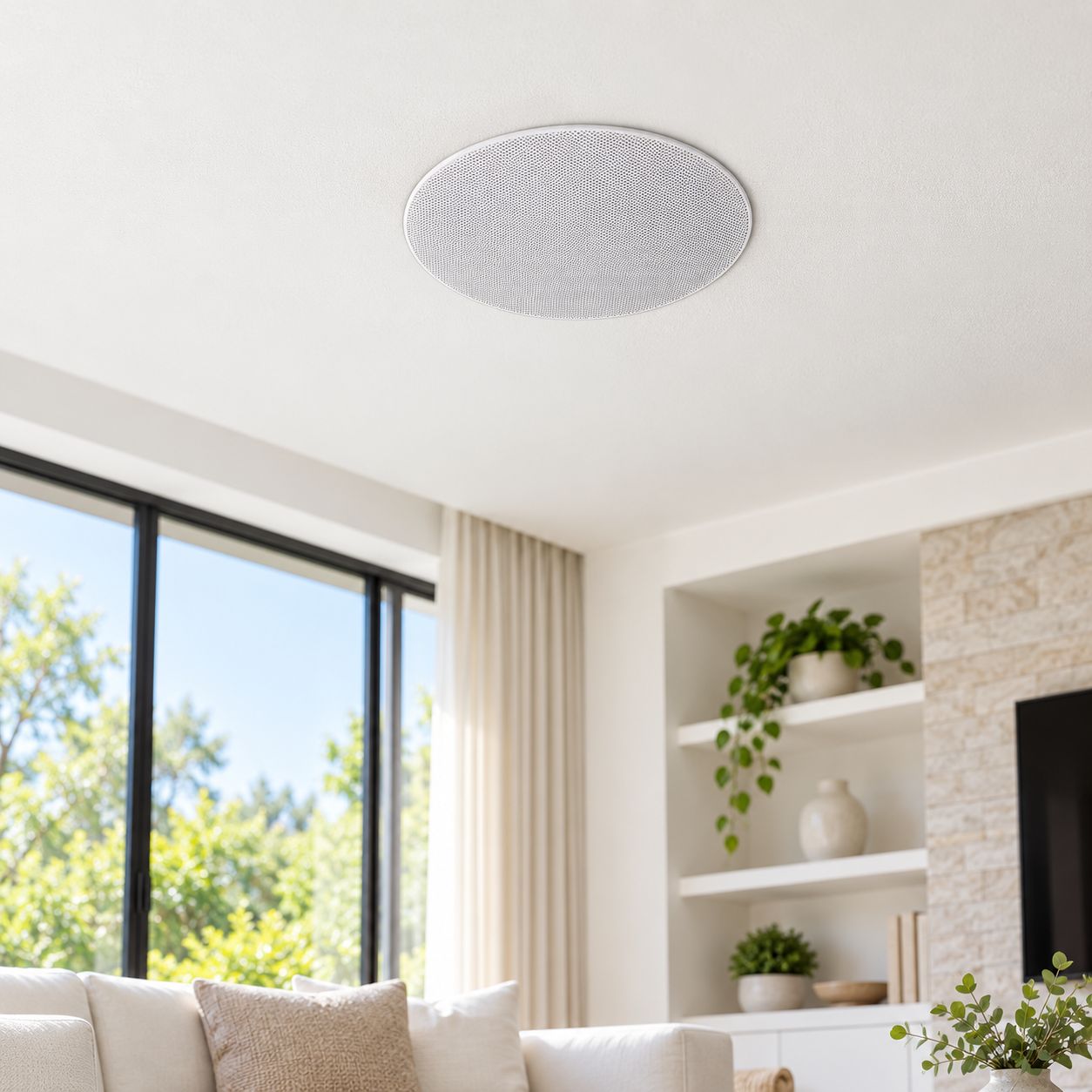

STUDIO Z 8-Inch 2-Way Ceiling Speaker, 60W RMS, Polypropylene Woofer with Rubber Surround, Silk Tweeter, 8-Ohm Impedance, SZCS-8015

Bring music into your space while keeping floors and shelves open. The STUDIO Z SZCS-8015 combines an 8-inch polypropylene woofer with a silk tweeter in a two-way ceiling speaker designed for integrated audio installations.

Its ceiling-mounted format offers a discreet way to add background music to homes, cafés, restaurants, and retail spaces. The rubber-surround woofer and aluminum basket provide a practical foundation for a permanent sound system.

PRODUCT OVERVIEW

Product Type: 2-way ceiling speaker

Capacity/Size: 8-inch woofer

Primary Materials: Polypropylene cone, rubber surround, silk tweeter, aluminum basket

Color/Finish: Black basket; grille finish requires confirmation.

Installation Type: Recessed ceiling installation

Recommended Use: Installed music systems in residential and commercial spaces

Included Components: Complete package contents are not officially specified by the manufacturer.

KEY FEATURES

8-inch polypropylene woofer with rubber surround

1.42-inch silk tweeter with a 1-inch KSV voice coil

1-inch ASV woofer voice coil

60W RMS power handling

8-ohm impedance

50 Hz–20 kHz frequency range

89 dB ± 2 dB published SPL specification.

PRODUCT ADVANTAGES

Keeps furniture and floor space available through ceiling installation.

Combines dedicated low- and high-frequency drivers in one unit.

Supports a discreet audio layout for everyday listening.

Offers an installed music solution for homes and customer-facing spaces.

TECHNICAL SPECIFICATIONS

Model: SZCS-8015

Speaker Configuration: 2-way

Woofer Size: 8 in

Woofer Cone: Polypropylene

Woofer Surround: Rubber

Tweeter Material: Silk

Tweeter Diameter: 1.42 in

Tweeter Voice Coil: 1-inch KSV

Woofer Voice Coil: 1-inch ASV

RMS Power Handling: 60W

Nominal Impedance: 8 ohms

Frequency Range: 50 Hz–20 kHz

Published SPL: 89 dB ± 2 dB

Basket: Aluminum, black.

PRODUCT DIMENSIONS & WEIGHT

Outer Diameter: 11.02 in

Mounting Cutout Diameter: 10.16 in

Nominal Woofer Diameter: 8 in.

PERFECT FOR

Residential ceiling audio installations

Restaurant and café background music

Retail store music systems

School and commercial audio projects

Spaces where floor and shelf space should remain available

Product Dimensions

Width (Diameter): 11.0 in (outer trim)
Depth (Mounting Depth): 4.1 in

Net Weight: 4.0 lb

^{Warranty: 1 Year Manufacturer Warranty}
