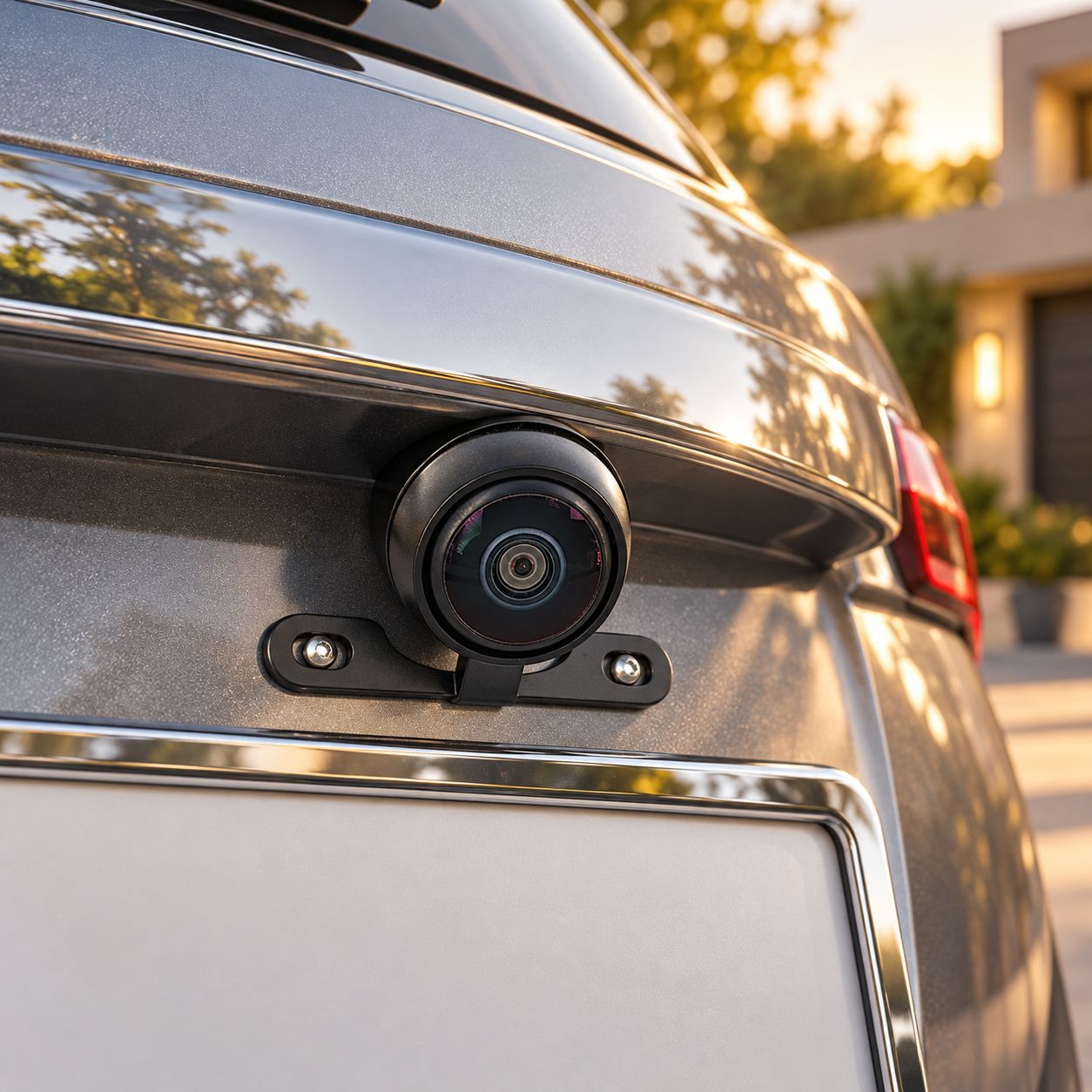

QFX 120° Wide Angle CCD Car Rear View Backup Camera, IP69K Waterproof, NTSC/PAL, 12V DC CAM-2

The QFX CAM-2 is a compact, round rear-view camera designed to provide additional visibility when reversing or parking. Its 120-degree viewing angle helps the driver observe a wider area behind the vehicle.

The camera uses a CCD image sensor with 728 × 500 effective pixels and 500 TVL horizontal resolution. Its IP69K-rated enclosure is designed for exterior automotive installation, while the 0.01-lux minimum illumination specification supports operation in low-light conditions.

The CAM-2 connects to a compatible vehicle monitor, multimedia receiver, or backup-mirror display through a wired RCA video connection.

OVERVIEW

Camera Design: Compact round housing
Installation Type: Wired exterior installation
Image Sensor: CCD
Viewing Angle: 120° diagonal
Video Resolution: 500 TVL
Effective Pixels: 728 × 500
Weather Protection: IP69K
Power Requirement: 12V DC
Display Included: No

KEY FEATURES

Wide Viewing Area: 120-degree diagonal viewing angle for improved visibility behind the vehicle.
CCD Image Sensor: Produces a stable analog video image for compatible automotive displays.
500 TVL Resolution: Delivers 728 × 500 effective pixels.
Low-Light Performance: Rated for minimum illumination of 0.01 lux at F1.2.
Weather-Resistant Construction: IP69K-rated camera enclosure.
Universal Wired Connection: Connects through an RCA composite video cable.
Automotive Power: Designed exclusively for 12V DC vehicle electrical systems.
Wide Operating Range: Rated from -22°F to 176°F (-30°C to 80°C).

ADVANTAGES

Improved Rear Visibility: Helps the driver see obstacles that may be difficult to observe through the mirrors.
Compact Installation: Its small round design can be integrated discreetly into the rear of a vehicle.
Outdoor Durability: The IP69K rating provides protection suitable for exterior automotive use.
Low-Light Assistance: The sensitive CCD sensor supports clearer visibility in dim environments.
Receiver Compatibility: Suitable for aftermarket stereos and monitors equipped with a compatible composite rear-camera input.

TECHNICAL SPECIFICATIONS

Image Sensor: CCD
Signal System: NTSC/PAL
Effective Pixels: 728 × 500
Synchronization System: Internal
Horizontal Resolution: 500 TVL
Minimum Illumination: 0.01 lux at F1.2
Viewing Angle: 120° diagonal
Waterproof Rating: IP69K
Power Supply: 12V DC
Video Connection: RCA composite video
Operating Temperature: -22°F to 176°F (-30°C to 80°C)
24V Vehicle Compatibility: No; QFX warns that connection to 24V DC may permanently damage the camera.
Wireless Connectivity: No
Built-In Display: No

PERFECT FOR

Passenger Cars: Adds a rear video feed to a compatible in-dash receiver or monitor.
Pickup Trucks and SUVs: Helps improve visibility when reversing or aligning the vehicle.
Parking Assistance: Useful for observing nearby objects while backing into a parking space.
Aftermarket Stereo Systems: Designed for receivers equipped with an RCA rear-camera input and reverse-trigger connection.

1-year manufacturer warranty
