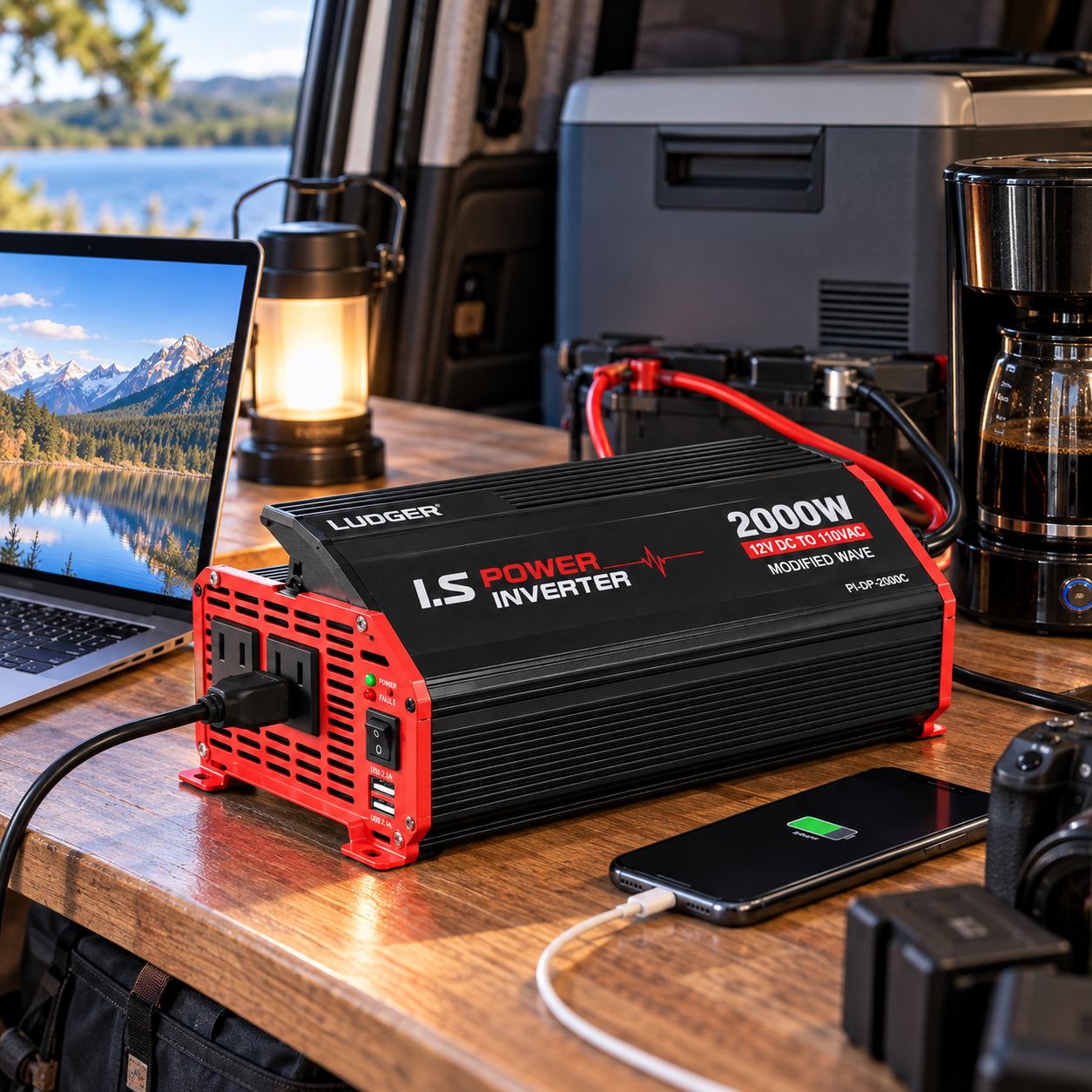

PIPEMAN’S / LUDGER 12V DC TO 110–120V AC MODIFIED SINE WAVE POWER INVERTER, 1000W CONTINUOUS / 2000W SURGE – PI-DP-2000C

The PI-DP-2000C Power Inverter converts 12V DC battery power into household-style 120V AC power, providing a practical mobile power solution for vehicles, RVs, trucks, emergency backup applications, camping, and other situations where conventional AC power is unavailable.

An important clarification for this exact model: although “2000W” appears in the model designation and is commonly used in product titles, 2000W is the surge rating. The owner's manual specifies 1000W maximum continuous output and 2000W maximum surge output for the PI-DP-2000C.

Overview

• Brand: Pipeman’s / Nippon America
• Model: PI-DP-2000C
• Product Type: DC-to-AC Power Inverter
• Maximum Continuous Power: 1000W
• Maximum Surge Power: 2000W
• Input: 12V DC battery system
• Operating Input Range: 11.0–15.0V DC
• Output: 120V AC RMS
• Output Frequency: 60 Hz ±1 Hz
• Waveform: Modified Sine Wave
• AC Outlets: 2 × 3-prong AC outlets
• USB Output: 5V / 2.1A
• Display: LED information display
• Remote Control: Included/supported
• Cooling: Ventilated/fan-cooled design

Key Features

1000W Continuous / 2000W Surge Power
Provides up to 1000 watts of continuous AC output, with 2000 watts of surge capacity for equipment requiring higher startup power.

12V DC to 120V AC Conversion
Designed to operate from a standard 12V battery system and supply household-style AC power for compatible electrical equipment.

Modified Sine Wave Output
Produces a modified sine wave AC output suitable for many common electrical loads. Compatibility should be verified for sensitive electronics and specialized chargers.

Dual AC Outlets
Two 3-prong AC receptacles share the inverter's available continuous output capacity.

USB Charging Port
Integrated 5V / 2.1A USB output provides a convenient charging connection for compatible USB-powered devices.

LED Display
The built-in display can indicate DC input voltage, AC output voltage, and AC output power.

Remote Operation
The manual specifies a 1.8 m remote control cable, allowing the inverter to be operated from a more convenient position after installation.

Protection Functions
The inverter incorporates operating protections associated with low/high input voltage, overload, excessive temperature, and short-circuit conditions.

Advantages

• Converts 12V battery power into usable AC power
• 1000W continuous output
• 2000W startup/surge capacity
• Two AC outlets
• USB charging output
• LED information display
• Remote-control capability
• Modified sine wave design
• Low-voltage alarm and shutdown protection
• High-voltage protection
• Overload and thermal protection
• Suitable for mobile and backup-power applications

Technical Specifications

Product  Weight

Net Weight: 4.9 lb (2.2 kg)

Perfect For

RVs, trucks, automotive applications, camping, emergency backup power, televisions, lighting, selected power tools, small appliances, and other compatible equipment operating within the inverter's 1000W continuous output capacity

1 Year manufacturer warranty
