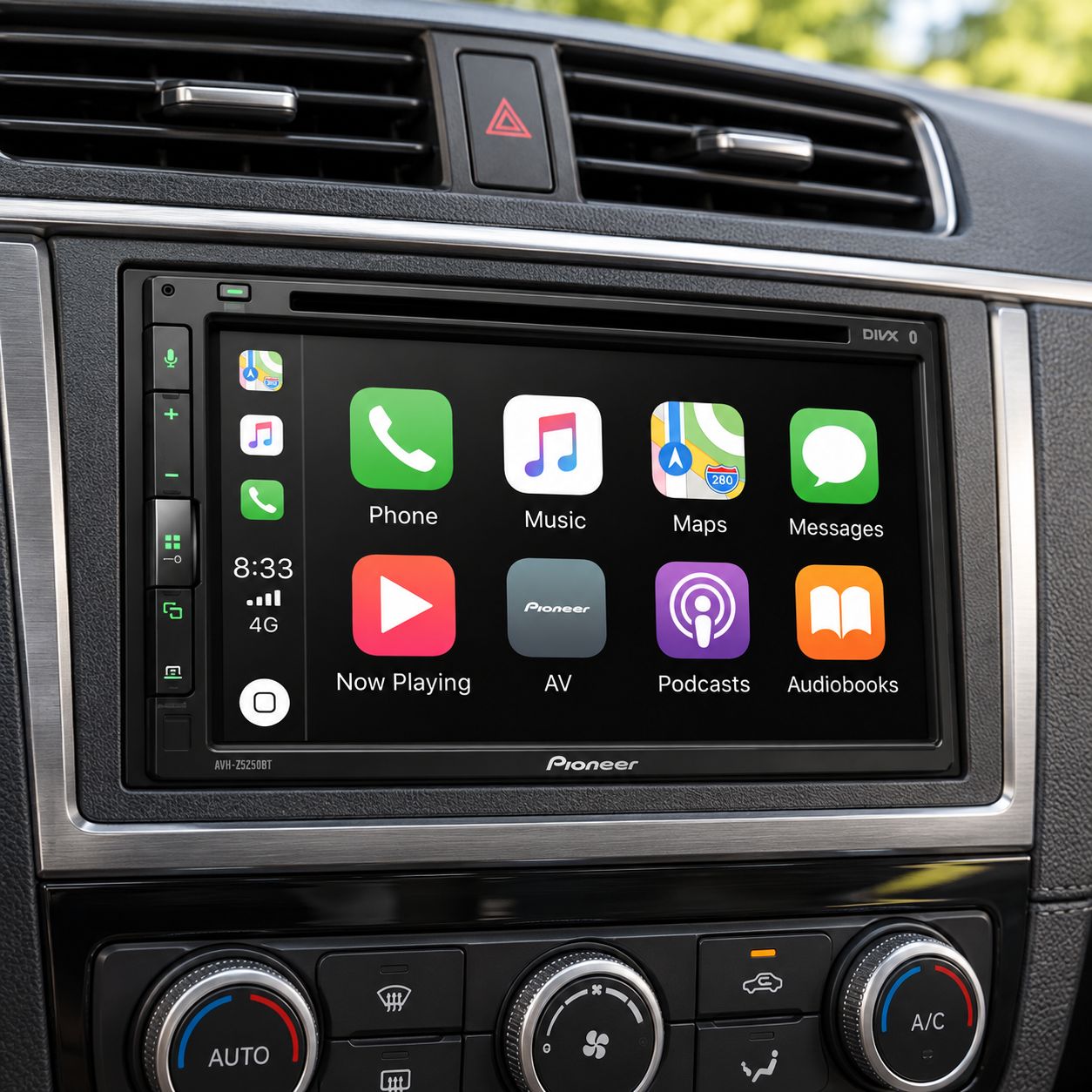

PIONEER 6.8-7.0-INCH DOUBLE-DIN DVD MULTIMEDIA RECEIVER, WVGA TOUCHSCREEN, BLUETOOTH, WIRED APPLE CARPLAY AND ANDROID AUTO, DUAL CAMERA INPUTS – AVH-Z5250BT

Bring smartphone connectivity and versatile entertainment to your dashboard with the Pioneer AVH-Z5250BT. This multimedia receiver combines a 6.8-inch touchscreen with Bluetooth calling and audio streaming, wired Apple CarPlay and Android Auto, plus CD/DVD and USB playback. Pioneer specifies a 6.8-inch display, rather than the rounded 7-inch size in the supplied description.

Overview

Designed for double-DIN installation, the AVH-Z5250BT offers touchscreen access to compatible smartphone functions and multiple media sources. Two camera inputs accommodate optional cameras, while advanced audio controls support a customized listening experience.

Key Features

6.8-inch WVGA Clear Type resistive touchscreen.
Wired Apple CarPlay and Android Auto.
Bluetooth hands-free calling and music streaming.
Simultaneous Bluetooth connection for two phones.
CD/DVD playback and rear USB connectivity.
Two camera inputs with parking guidelines.
13-band graphic equalizer.
Three pairs of 4V RCA pre-outs.

Advantages

Access compatible navigation, calls, and music apps through a connected smartphone. Customize sound with equalization, time alignment, and crossover controls. Expand your installation with external amplifiers and optional cameras.

Technical Specifications

Brand: Pioneer
Manufacturer model: AVH-Z5250BT
Supplied model code: AVHZ5250BT
Product type: In-dash DVD multimedia receiver
Installation format: Double-DIN
Display size: 6.8 in
Display resolution: WVGA, 800 × 480
Touchscreen: Clear Type resistive
Backlight: LED
Bluetooth: Built-in
Phone pairing memory: Five devices
Apple CarPlay: Wired
Android Auto: Wired
Disc playback: CD, CD-R/RW, DVD and compatible recordable DVD formats
USB: One rear port
USB audio formats: MP3, WMA, AAC, WAV, FLAC
USB video: Full HD playback supported
Radio: AM/FM with RDS
Maximum amplifier output: MOSFET 50W × 4
Equalizer: 13-band graphic
Audio network mode: Three-way
RCA pre-outs: Three pairs, 4V, front/rear/subwoofer
Camera inputs: Two
AUX input: Rear audio/video
Composite video output: Yes
Steering-wheel control support: Compatible interface or installation required
Auto EQ and automatic time alignment: Optional CD-MC20 microphone required.

Dimensions & Weight

Chassis, W × H × D: 7.01 × 3.94 × 6.46 in
Front panel, W × H × D: 6.73 × 3.82 × 0.12 in
Net weight: 3.09 lb

Shipping Box Dimensions & Weight

Shipping box dimensions: Pending confirmation.
Shipping weight: Pending confirmation.

Perfect For

Compatible double-DIN dashboard upgrades, smartphone-connected driving, Bluetooth audio, CD/DVD collections, and installations with optional parking cameras.

Dimensions & Weight

• Height: 4.0 inches
• Width: 7.0 inches
• Depth: 6.5 inches
• Item Weight: 4.4 pounds

^{Warranty:1 Year Manufacturer Warranty}
