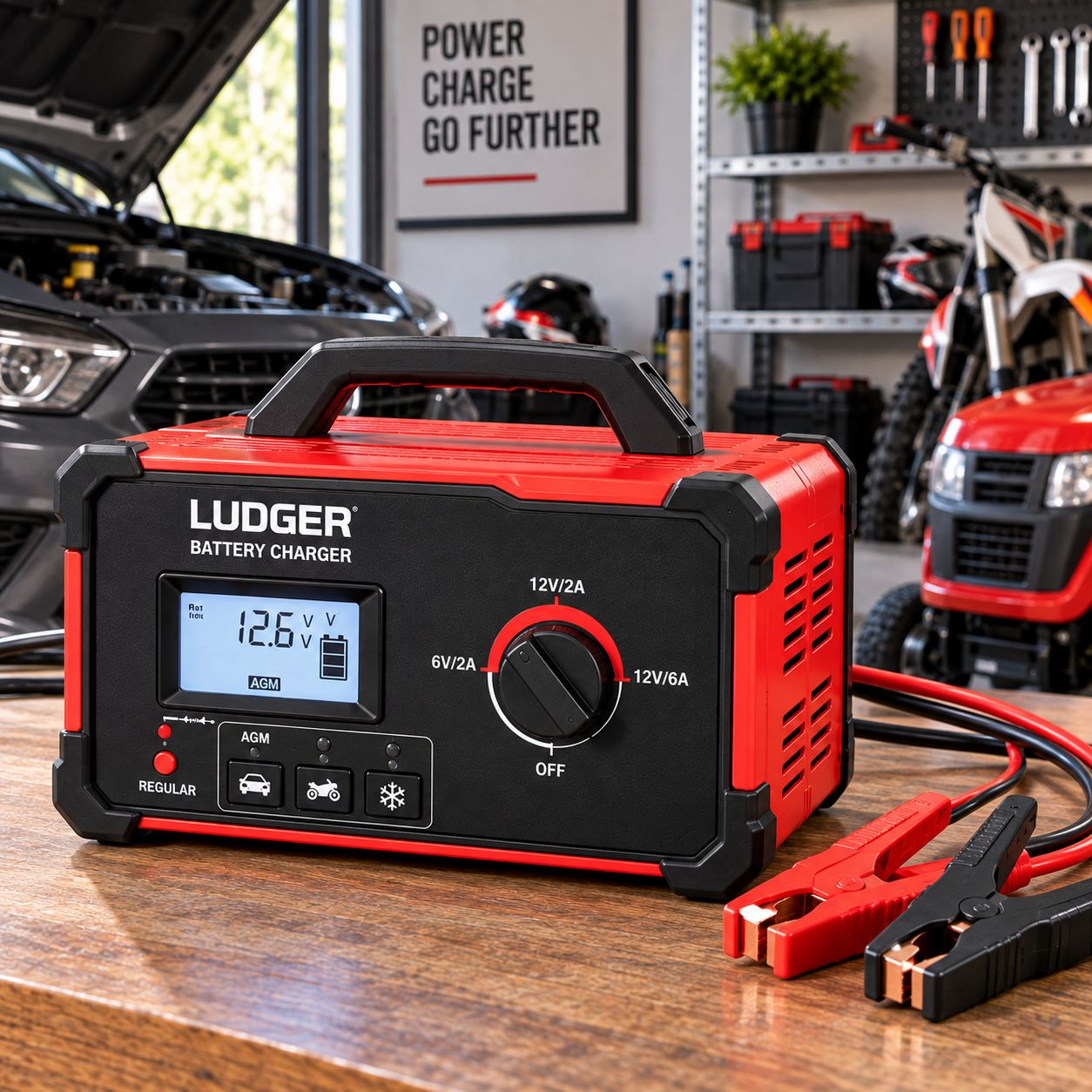

Ludger Battery Charger (LBCG-612-6), 12 Volts, Heavy-duty Cables and Clamps, Circuit Protection, Regular and AGM Battery Type, LED Screen, Automatic Charge, Cooling Fan, 3 Charging Modes, 120 AC/60 Hz

The Ludger LBCG-612-6 Battery Charger is a heavy-duty charger engineered for 6V and 12V lead-acid batteries, including Regular and AGM battery types. It combines automatic charging, three selectable charging modes, an LED status display, heavy-duty copper-plated clamps, integrated cooling, and multiple circuit-protection features in a compact portable design.

Overview

Designed for automotive, marine, recreational, and utility applications, the LBCG-612-6 supports both normal and quick charging. Once a battery reaches full charge, the unit automatically switches to trickle-charge mode. It also checks clamp connection and supports both side-post and top-mount battery terminals.

Key Features

• Heavy-duty cables with copper-plated clamps
• Built-in LED screen displaying charge status in amps and percentage
• Regular and AGM battery-type selection
• Automatic charging with trickle-charge mode
• Integrated cooling fan for heat dissipation
• Built-in circuit protection
• Incorrect-clamp connection warning
• Protection against overcharging, over-discharging, over-current, over-temperature, and short circuit
• Compatible with side-post and top-mount battery terminals
• Suitable for cars, pickup trucks, SUVs, RVs, boats, jet skis, ATVs, and snowmobiles

Charging Modes

12V / 2A: Normal Charge
12V / 6A: Quick Charge
6V / 2A: 6V Battery Charging

Technical Specifications

Brand: Ludger Power & Light
Model: LBCG-612-6
Product Type: Battery Charger
Battery Compatibility: 6V / 12V lead-acid batteries
Battery Types: Regular / AGM
Charging Modes: 12V/2A, 12V/6A, 6V/2A
Normal Charge: 2A
Quick Charge: 6A
Engine Start: 100A
Minimum Battery Voltage for Charger Operation: 3V DC
Rated Input: 120V AC / 60Hz
Input Power: <130W
Display: Built-in LED screen
Cooling System: Integrated cooling fan
Automatic Trickle Charge: Yes
Circuit Protection: Yes

Product Dimensions & Weight

Height: 3.5 in
Width: 6.2 in
Depth: 8.8 in
Product Weight: 5.95 lb (2.7 kg)

Shipping Box Dimensions & Weight

Shipping Box Length: 9.25 in
Shipping Box Width: 9.25 in
Shipping Box Height: 6.00 in
Shipping Weight: 6.60 lb

Advantages

The LBCG-612-6 provides flexible charging for both 6V and 12V batteries while offering automatic charging management and multiple electrical protections. Its compact dimensions and 5.95-lb weight make it relatively portable, while the integrated fan assists with thermal management during charging.

Perfect For

Cars, pickup trucks, SUVs, RVs, boats, jet skis, ATVs, snowmobiles, garages, workshops, automotive maintenance, battery recovery, and seasonal vehicle maintenance.

1Year Manufacturer Warranty
