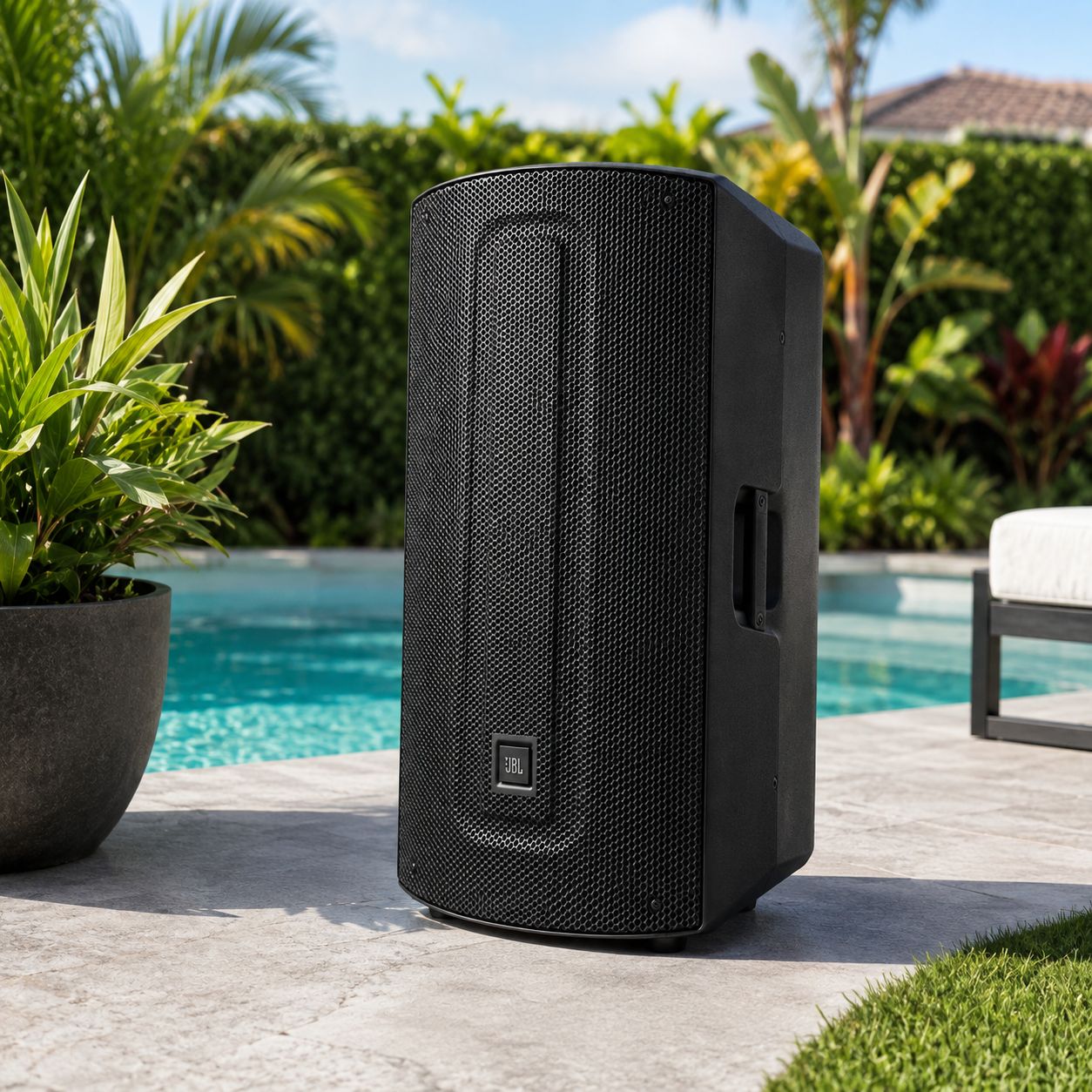

JBL MAX12 Professional 12" Two-Way Powered PA Loudspeaker With Bluetooth 5.0, 350W RMS, 128 dB SPL & Integrated DSP (MAX12)

Bring professional JBL sound to live performances, events, presentations and entertainment spaces with the JBL MAX12, a powerful 12-inch two-way amplified loudspeaker engineered to deliver impressive output, clear vocals and strong, controlled bass. With a maximum sound pressure level of 128 dB SPL, the MAX12 delivers the projection and clarity needed for demanding PA applications while maintaining a practical, portable design.

Its integrated amplification delivers 300 W RMS to the low-frequency driver plus 50 W RMS to the high-frequency driver, eliminating the need for a separate power amplifier. Built-in DSP with Tone and Locate functions, independent compressors and limiters helps optimize performance and protect the system during demanding use.

For greater flexibility, the MAX12 features Bluetooth 5.0 audio streaming, two combo XLR/1/4" inputs, a 3.5 mm auxiliary input, USB connection and XLR THRU output. Its rugged molded polypropylene enclosure, 35 mm pole socket and three M10 mounting points make it an excellent solution for musicians, DJs, houses of worship, event spaces, presentations and professional mobile audio systems.

PRODUCT OVERVIEW

The JBL MAX12 combines professional JBL sound, integrated amplification, DSP processing and wireless Bluetooth streaming in a rugged 12-inch PA enclosure designed for versatile professional and entertainment applications.

KEY FEATURES

• 12" two-way powered loudspeaker
• 350 W RMS total amplifier output: 300 W LF + 50 W HF
• Maximum SPL: 128 dB
• Bluetooth 5.0 audio streaming
• Integrated DSP processing
• 100° H × 60° V nominal coverage
• Two XLR/1/4" combo inputs
• 3.5 mm auxiliary input
• USB input
• XLR THRU output
• 35 mm pole-mount socket
• Three standard M10 mounting points
• Rugged molded polypropylene cabinet

PRODUCT ADVANTAGES

• Powerful output for live and professional applications
• Clear vocal reproduction with strong bass performance
• Built-in amplifier eliminates external amplification
• Bluetooth provides convenient wireless music streaming
• Multiple inputs accommodate microphones, mixers and audio devices
• Integrated DSP improves control and system protection
• Suitable for portable or installed applications
• Rugged enclosure designed for regular professional use

TECHNICAL SPECIFICATIONS

System Type: Amplified, two-way, 12" with DSP
Cabinet Material: Molded polypropylene
Maximum SPL: 128 dB SPL
Frequency Response (±3 dB): 65 Hz – 16.5 kHz
Frequency Response (±10 dB): 55 Hz – 19 kHz
Coverage Pattern: 100° horizontal × 60° vertical nominal
Rated Output Power: 300 W RMS Class D (LF) + 50 W RMS Class AB (HF)
Total Rated Amplifier Output: 350 W RMS
Woofer: 12"
High-Frequency Driver: 1.35"
Input Connections: 2 × Combo XLR/1/4", 1 × 3.5 mm, 1 × USB
Input Impedance: 100 kΩ
Signal Output: 1 × XLR THRU
Bluetooth: Bluetooth 5.0 audio streaming
DSP: Tone and Locate functions; independent predefined compressors and limiters
AC Power: 110–127 V or 220–240 V selectable
Maximum Power Consumption: 400 W RMS
Fuse: T6.3AL / 250 V
Pole Mount: 35 mm socket
Suspension / Lift Points: 3 × standard M10 threaded points

PRODUCT DIMENSIONS & WEIGHT

Height: 24.76 in. (629 mm)
Width: 14.37 in. (365 mm)
Depth: 13.98 in. (355 mm)
Net Weight: 35.0 lb. (15.9 kg)

MANUFACTURER SHIPPING BOX DIMENSIONS & WEIGHT

Official JBL Manufacturer Package Dimensions (H × W × D):
27.16 × 17.52 × 17.52 in.
(690 × 445 × 445 mm)

Official Manufacturer Gross / Shipping Weight:
40.9 lb. (18.55 kg)

These are the manufacturer-published JBL package dimensions and gross weight, not estimated shipping measurements.

PERFECT FOR

DJs • Live Musicians • Small & Medium Events • Houses of Worship • Corporate Presentations • Parties • Mobile PA Systems • Event Venues • Fitness Studios • Professional Audio Applications

1Year Manufacturer Warranty
